Yacht Stairs

  • Deluxe Tri-Rail treads appear to “float” in suspension between the two stainless steel side-rail supports.
  • Self-leveling treads are made of fiberglass with a rigid aluminum axle that rotates smoothly in delrin bushings.
  • Monorail side supports eliminate the scissors-like pinch potential of other boarding stair designs, and provides a stiffer, more solid & secure feel when walk-ing on the stairs.
  • Real inlaid teak non-skid tread inserts.
  • One offset handrail, either teak or polished stainless steel, is provided for your boarding safety, and a second may be ordered as an optional feature.
  • Yacht Stairs rod-mount conveniently and lock securely into flush-mount stainless steel hull side brackets.
  • Rotation mounting platforms and / or self-storing pocketing Yacht Stairs are available as optional features.

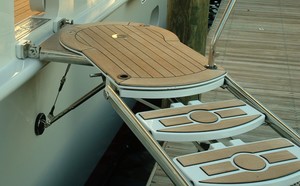

Rotation Platform allows the stairway to rotate 160°Rotation Platform allows the stairway to rotate 160°

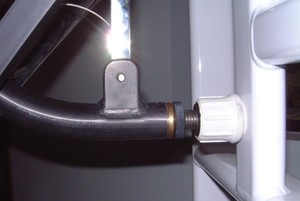

A close-up detail of the in-field adjustable leveling standoff. Our design protects the crutchtip from damage and requires no tools for fine adjustment.A close-up detail of the in-field adjustable leveling standoff. Our design protects the crutchtip from damage and requires no tools for fine adjustment.

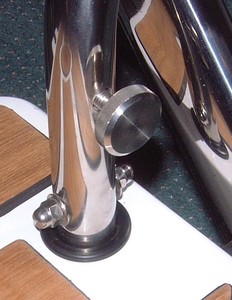

A close-up detail of the innovative handrail stanchion-clamp.  Note the delrin socket to receive the self-clamping

A close-up detail of the innovative handrail stanchion-clamp. Note the delrin socket to receive the self-clamping

No. of TreadsStowed Length x Width x ThicknessWorking Height: Deck to DockWeight, Stainless Steel (approx.)
5 65.63 x 25.5 x 3.25in
(1667 x 647 x 83mm)
to 53.3in (135 cm) 69lb (31kg)
6 78.63 x 25.5 x 3.25in
1997 x 647 x 83mm
to 64.5in (164 cm) 80lb (36kg)
7 91.63 x 25.5 x 3.25in
2327 x 647 x 83mm
to 75.8in (192 cm) 91lb (41kg)
8 104.63 x 27.13 x 4.0in
2657 x 688 x 102 mm
to 87.0in (220 cm) 109lb (49kg)
9 117.63 x 27.13 x 4.0in
2987 x 688 x 102mm
to 98.3in (250 cm) 128lb (58kg)

Click to print Yacht Stairs specification sheet
